RailLab acquire JWT for to request its services (RC License API, RailSync API) using OAuth2 Authorization Code Flow with Microsoft login service at the following url: https://login.microsoftonline.com/organizations/

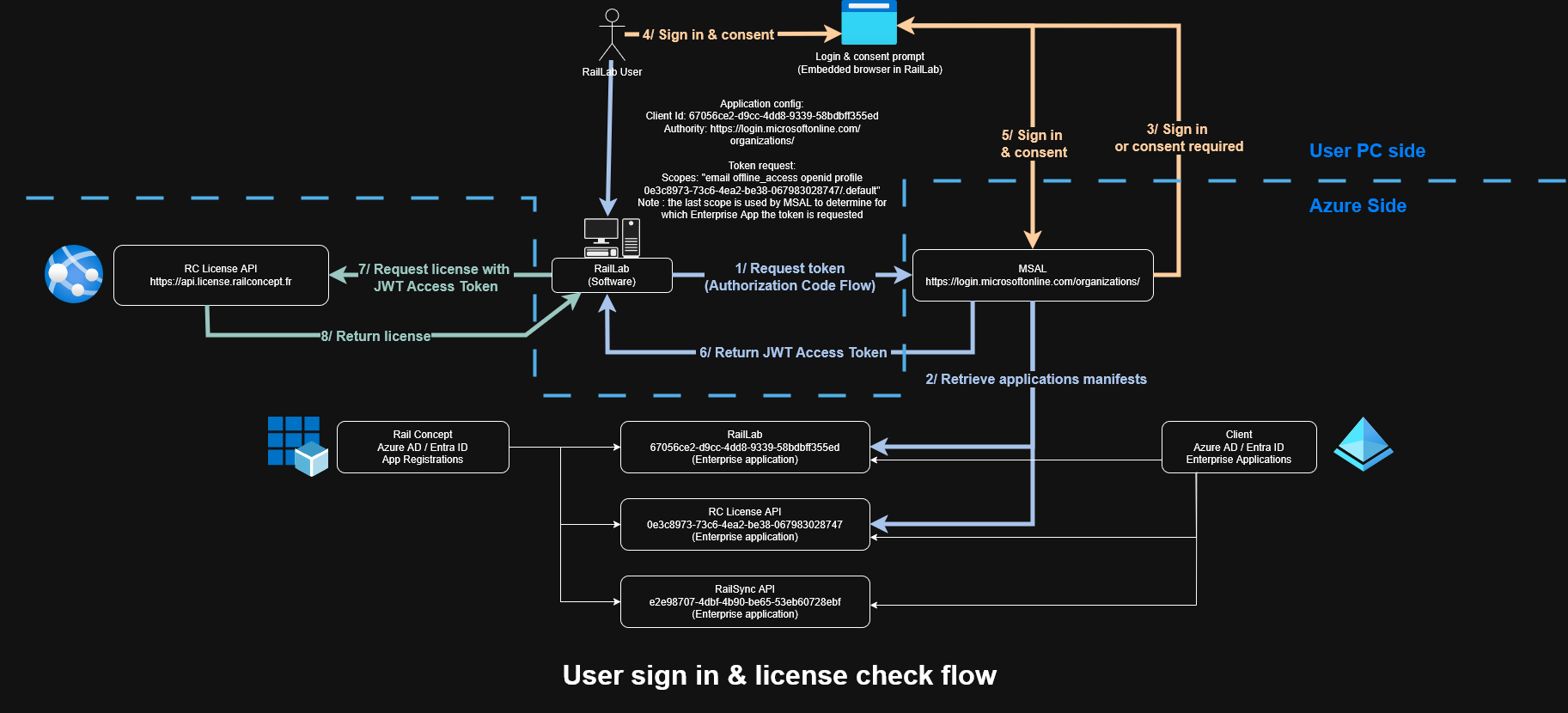

Here’s a chart explaining how a license is acquiring from the JWT to the actual license:

Reminder: RailSync API is an additional service to RailLab and entirely optional

Enterprises applications

Enterprises applications are instances of OAuth2 application in your Azure Entra Id (previously Azure Active Directory)
To integrate RailLab in SSO, some applications are required to be set up in your Enterprise Applications

Checking if applications are present

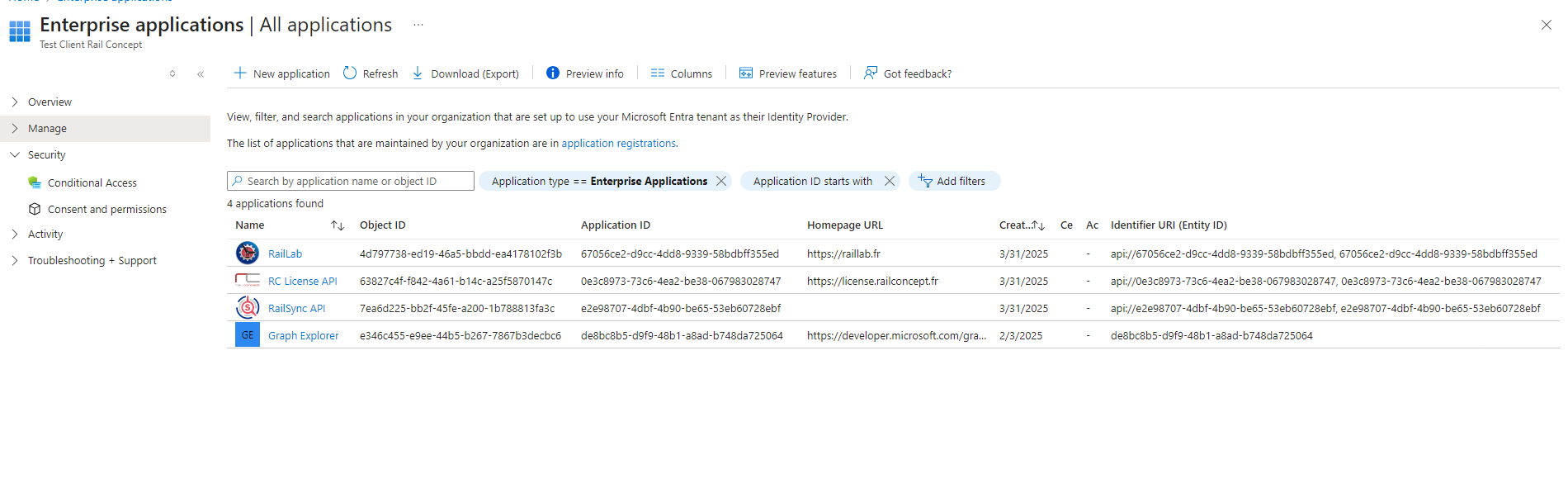

To check if they are present in your Entra ID, simply search for them in “Enterprise Applications” in your Azure Portal:

Full sized version

If you cannot see the applications, either they are missing and need to be added in Azure, or you do not have permission to view them in your Azure portal (which is not a default Tenant setting)
In a default tenant, these applications are created automatically when you first sign in via RailLab

Application IDs should always be the same no matter the tenant, here they are in text for easier copy & paste:

RailLab: 67056ce2-d9cc-4dd8-9339-58bdbff355ed
RC License API: 0e3c8973-73c6-4ea2-be38-067983028747
RailSync API: e2e98707-4dbf-4b90-be65-53eb60728ebf

Adding applications if missing as an admin

Here’s the following consent urls for the applications in the edge case an unprivileged user cannot add Enterprise Application in your tenant:

RailLab
https://login.microsoftonline.com/organizations/adminconsent?client_id=67056ce2-d9cc-4dd8-9339-58bdbff355ed

Normally consenting for RailLab application implictly consent for both RC License API and RailSync API applications, however in the case it didn’t automatically add those application here’s the consent urls for the others applications:

RC License API
https://login.microsoftonline.com/organizations/adminconsent?client_id=0e3c8973-73c6-4ea2-be38-067983028747

RailSync API
https://login.microsoftonline.com/organizations/adminconsent?client_id=e2e98707-4dbf-4b90-be65-53eb60728ebf

Privileges required to consent for the applications or change their settings may differ depending on your Tenant settings

Applications properties and permissions

Enterprise applications may require

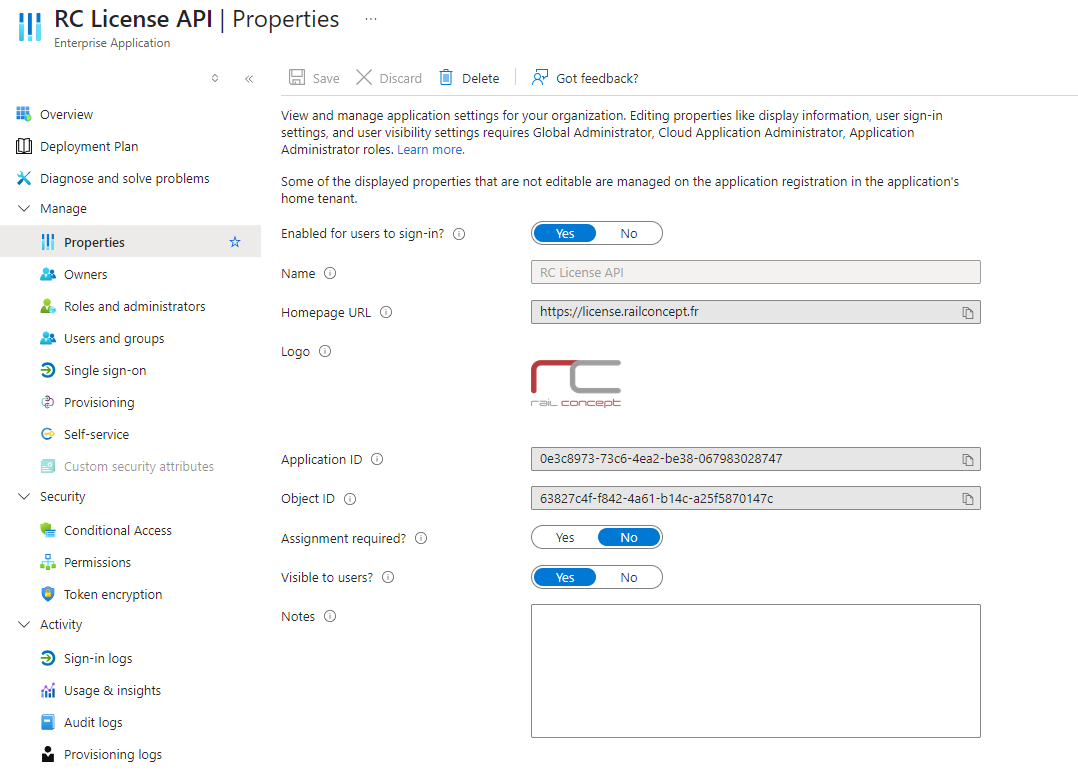

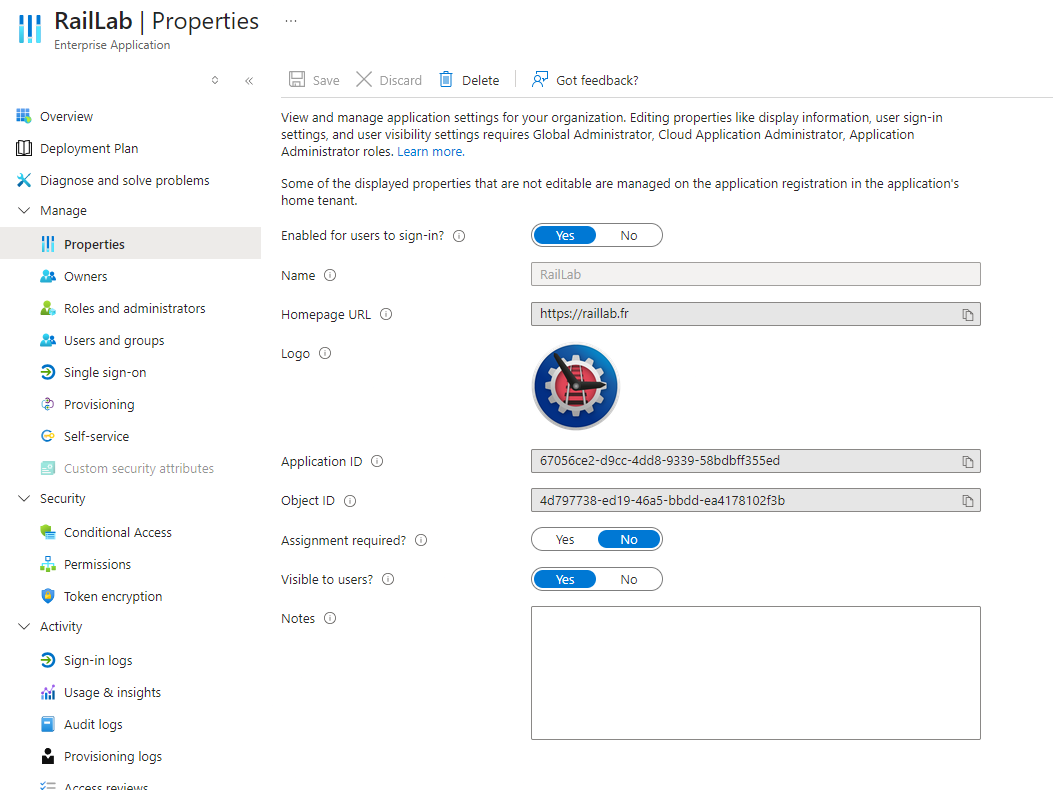

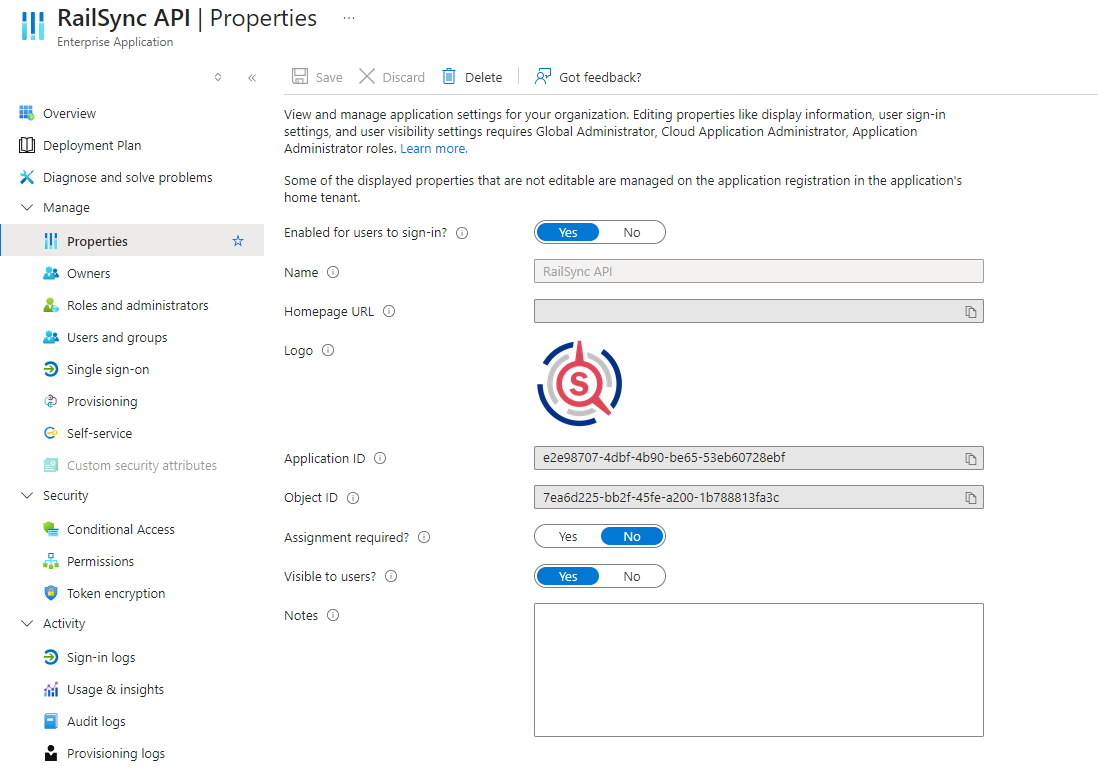

In the properties of each application you may also want to check the following checks:

“Enabled for users to sign-in?”: If deactivated sign in is impossible
“Assignment required?”: If actived, you must assign each user manually in the “Users and groups” tab for each application

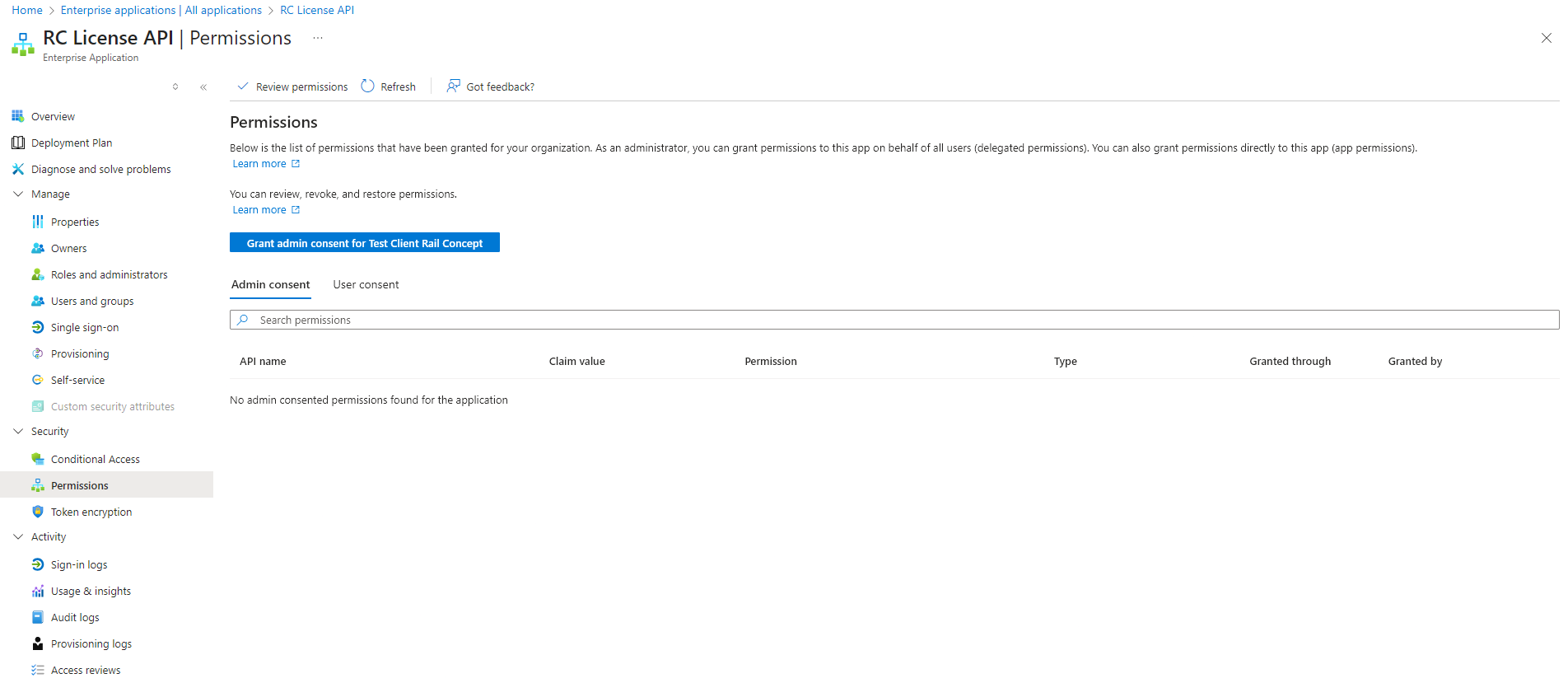

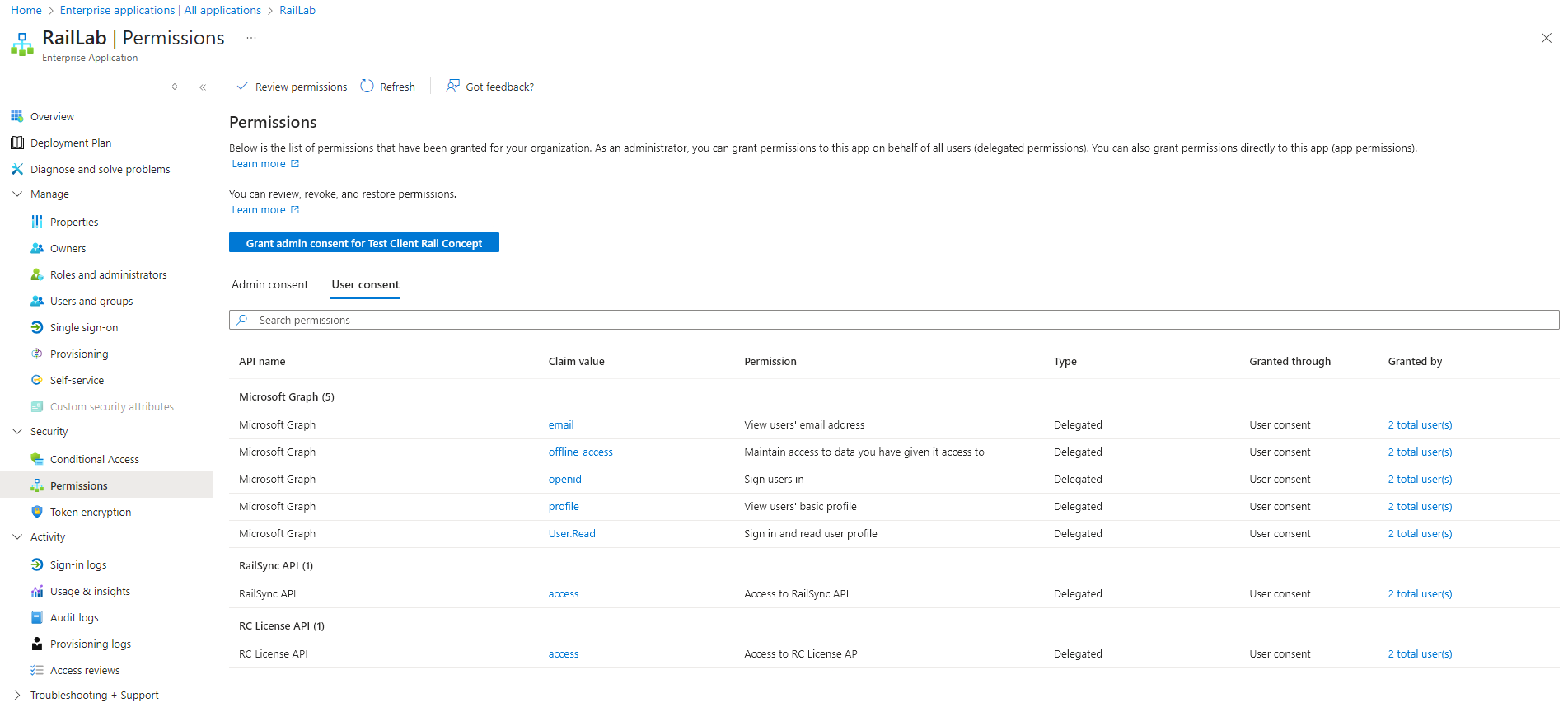

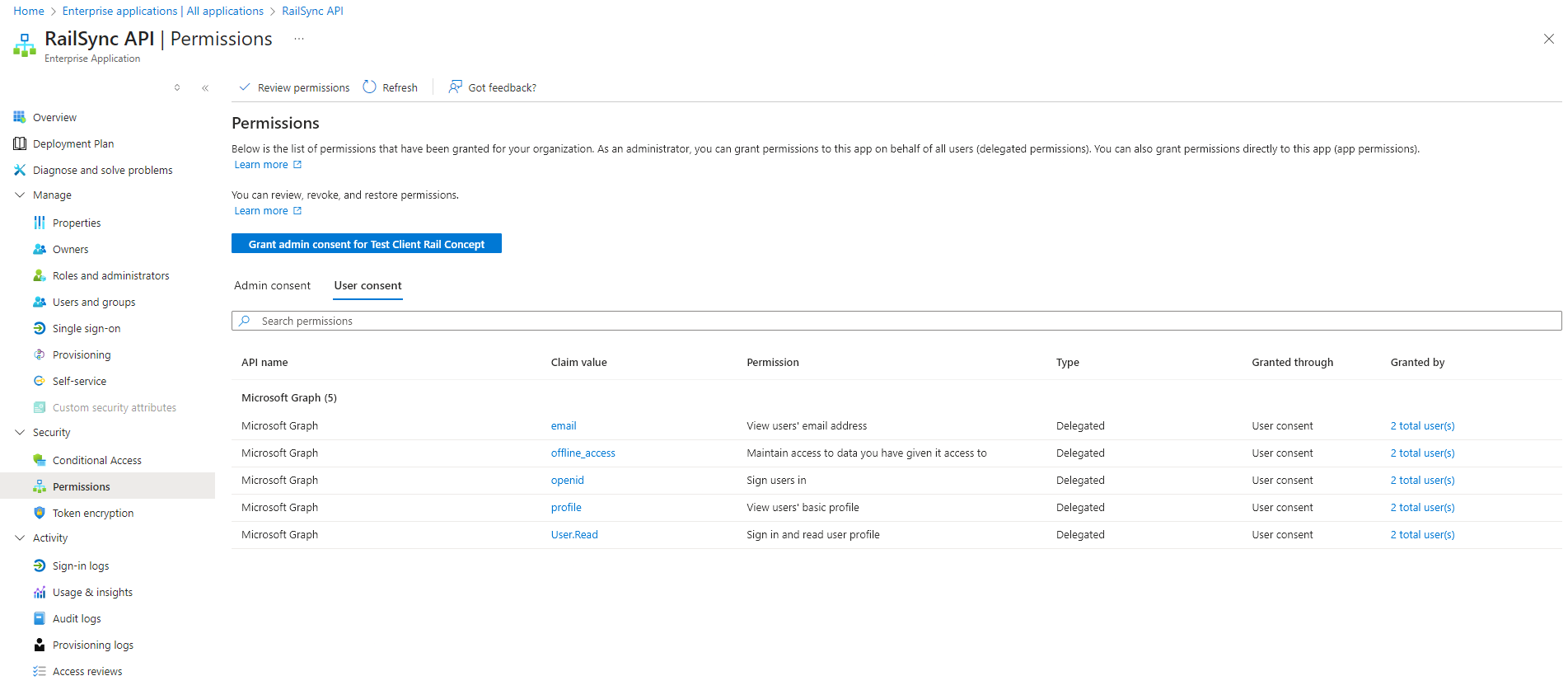

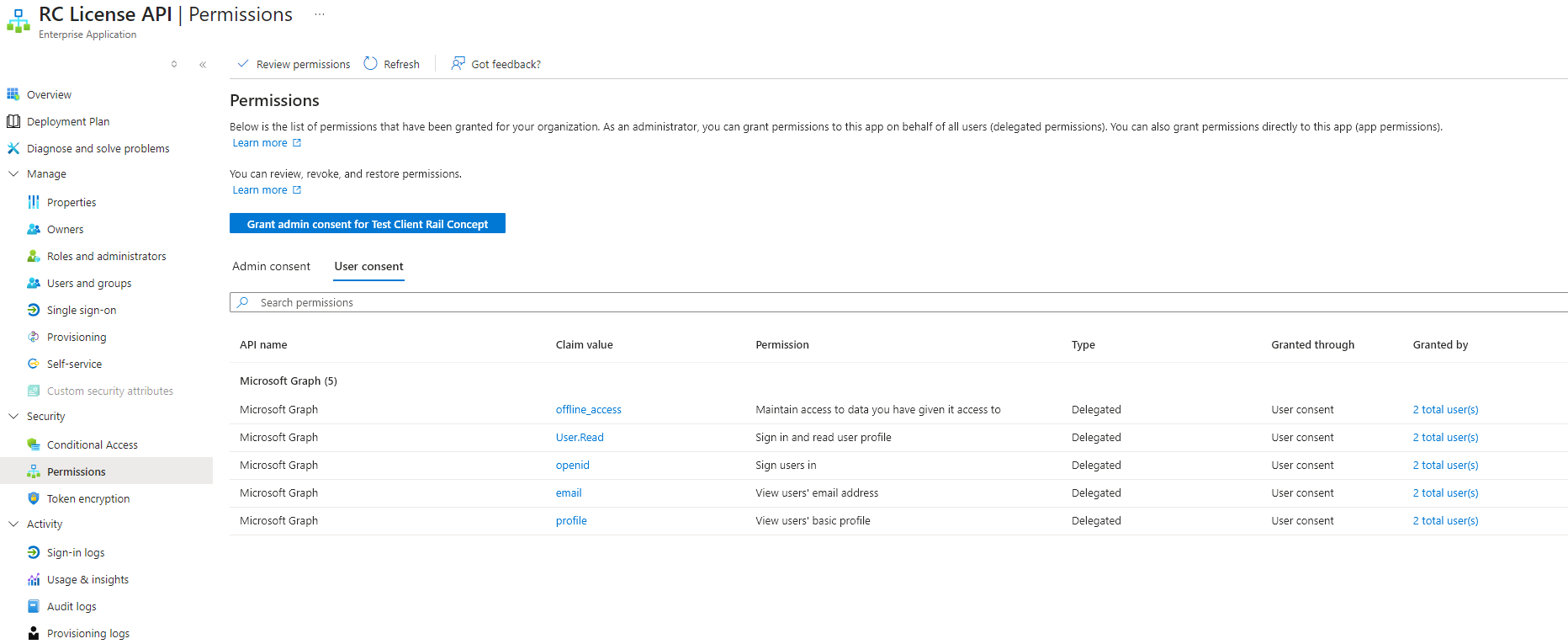

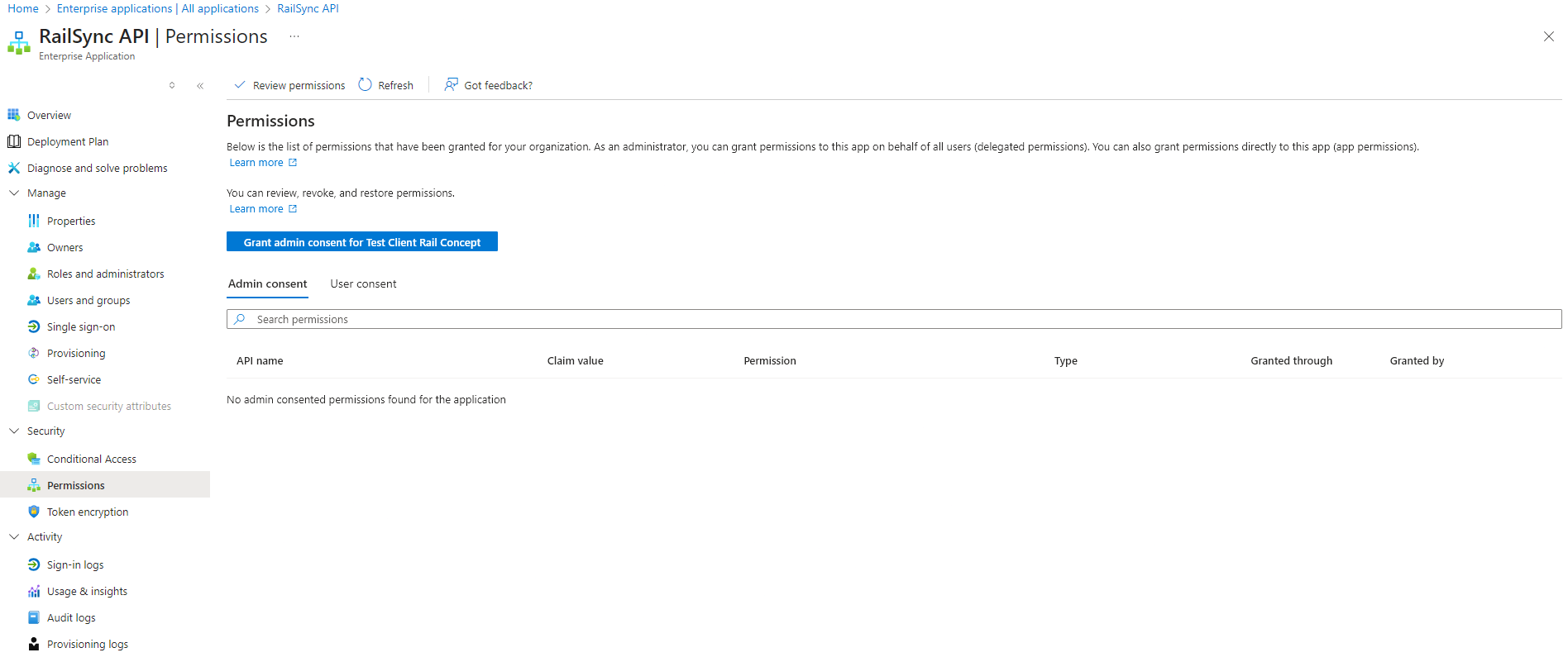

Here’s the permissions required for every Enterprise Application, you will notice that no permission requiring an admin consent is needed
However this can change depending on your tenant’s settings, if so you need will need to press the button “Grant admin consent for " with an account with the correct privileges
